Description
FRAME SIZE
Hydroformed 6000-Series Aluminum Frame
FRAME COLOR
Raindrop Blue
DRIVE MOTOR
Rear Hub Motor – 750W (1310W Peak), 85Nm Torque, M24 Technology
BATTERY

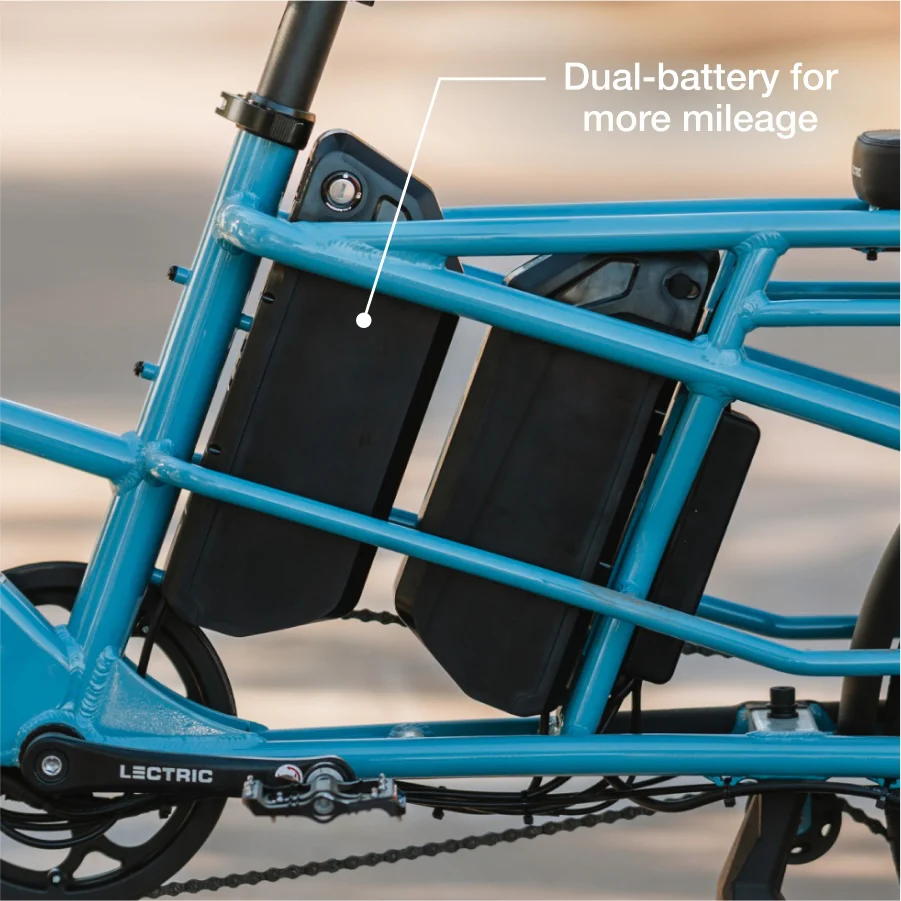

Dual 48V, 17.5Ah Lithium-Ion Batteries (35Ah / 1680Wh Total), UL 2271 / UL 2849 Certified
DRIVE SYSTEM DISPLAY

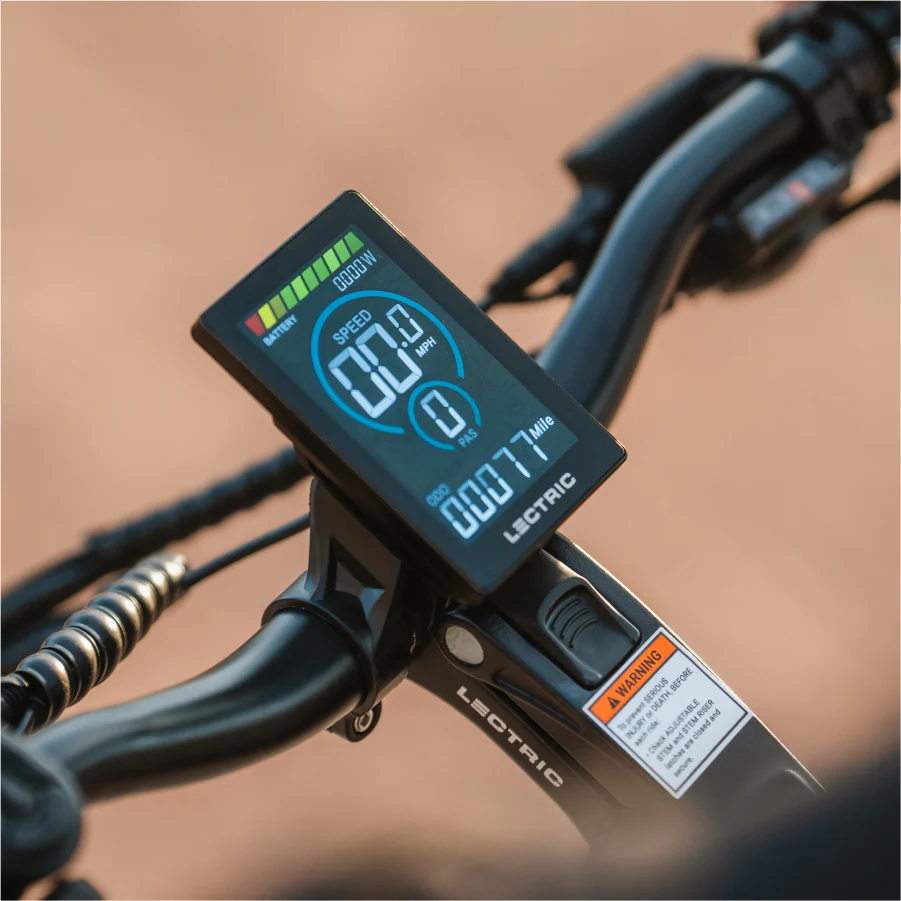

Color LCD Display with USB-C Port, IP-65 Rated
SUSPENSION FORK
Courier 50 Dual-Spring Suspension Fork, 50mm Travel, Adjustable Preload
REAR SHOCK
N/A
REAR DRIVE GEAR SYSTEM
Shimano Altus 8-Speed Drivetrain, 11-32T Freewheel
DRIVE CHAIN/BELT
KMC Z8 Steel Chain with Idler Pulley
BRAKES

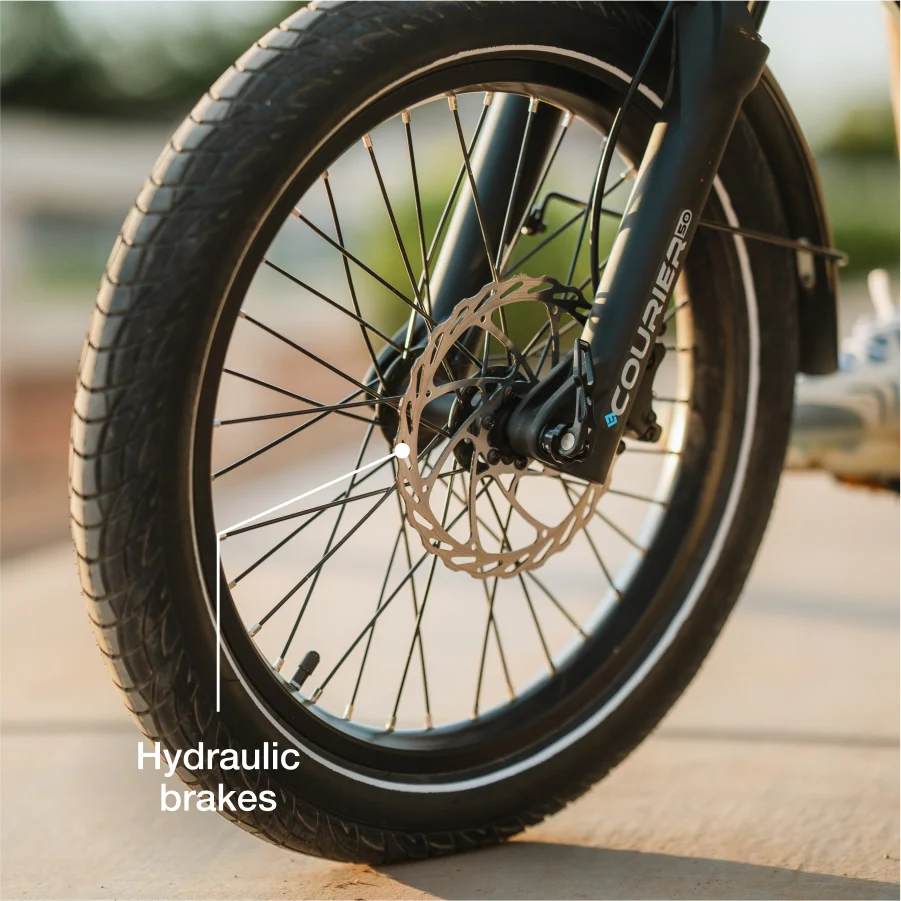

Hydraulic Mineral Oil Disc Brakes, 180mm Rotors
SEATPOST
Dual Adjustable Seat Post, Removable
TIRES
20” x 2.5” Puncture-Resistant Street Tires with Slime Protection
HEADLIGHT / TAIL LIGHT
Integrated Headlamp with Brake-Activated Rear Light
THUMB / TWIST THROTTLE
Below-the-Bar Thumb Throttle
CRANKSET
Forged Aluminum, 52-Tooth Chainring
ACCESSORIES & FEATURES

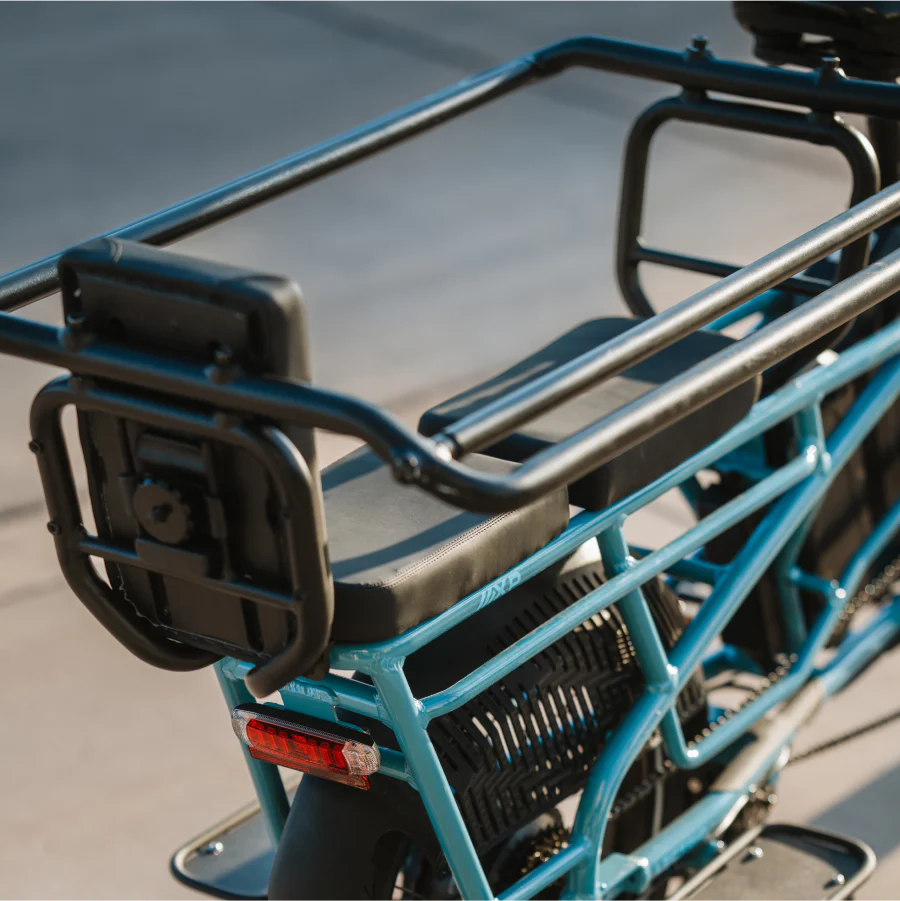

Long Integrated Rear Rack (300lb Capacity), Turn Signals, Folding Dual-Leg Cargo Kickstand, Polypropylene Fenders, Lock-On Grips, Custom Saddle, Adjustable Handlebar Stem, Quick-Release Pedals, Hidden Cable Routing, Multiple Accessory Mounting Points
BIKE DIMENSIONS
Unfolded: 77″L x 17″W x 46″H
Folded: 70″L x 10″W x 30″H
Stand Over Height: 21″
Handlebar Height: 41″–44″ Adjustable
Handlebar Width: 25″
Handlebar Reach: 17″–24.5″
Seat to Ground: Min 32” / Max 49”
Rider Height: 4’11”–6’5”
WEIGHT & PAYLOAD
Bike Weight: 65 lbs (without batteries)
Battery Weight: 9 lbs each
Max Payload: 450 lbs
Rear Rack Payload: 300 lbs
CHARGING
Standard 2A Charger (7–9 Hours per Battery), Optional 5A Fast Charger
MOTOR CONTROLLER
24A IP-65 Rated Controller with Thermal Management
SAFETY & CERTIFICATIONS
UL 2271 & UL 2849 Certified Battery & eBike
DIN 79010 Cargo Bike Safety Tested
PACKAGING & ASSEMBLY
Biodegradable/Recyclable Packaging, Tool-Free Assembly in ~1 Minute
FEATURE HIGHLIGHTS
Heavy-Duty Cargo Capacity (Up to 450 lbs)
750W Rear Hub Motor (1310W Peak) with M24 Technology
Dual Battery System (1680Wh) for up to 170 Miles of Range
Torque Sensor with Lectric PWR+ Pedal Assist Programming
Courier 50 Suspension Fork with 50mm Travel
Shimano Altus 8-Speed Drivetrain
Hydraulic Disc Brakes with 180mm Rotors
Integrated Lights, Turn Signals, and Dual-Leg Cargo Kickstand
