Description

FRAME
Fully redesigned 6000-series aluminum foldable frame

COLOR
Pine Green

MOTOR
750W rear hub motor (1310W peak) with Stealth M24 technology

TORQUE
85Nm

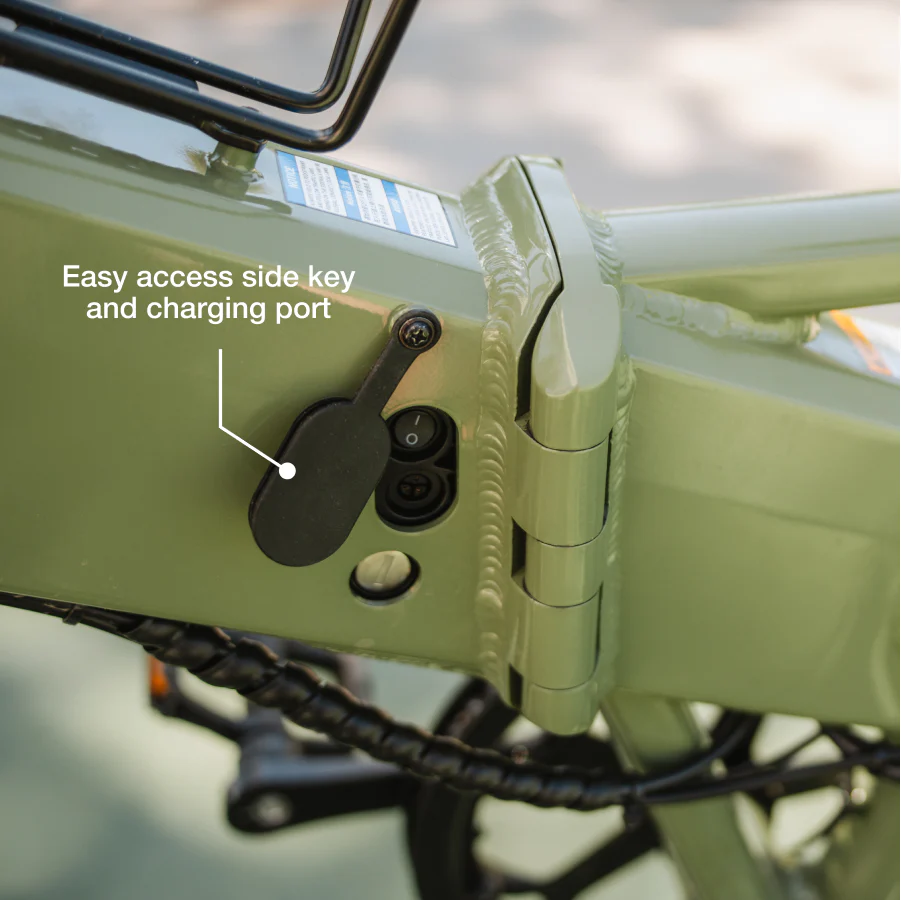

BATTERY
48V 17.5Ah (840Wh) lithium-ion battery – UL 2271 certified

RANGE
Up to 85 miles per charge

DISPLAY
3.5″ detachable TFT color display with USB-C port

RIDING MODES
Eco / Tour / Sport / Sport+ / Turbo

THROTTLE
Ergonomic thumb throttle

DRIVETRAIN
Shimano Altus derailleur with 8-speed freewheel (11-32T)

CHAIN
KMC Z8 steel chain

CRANKSET
Forged aluminum with 56-tooth custom chainring

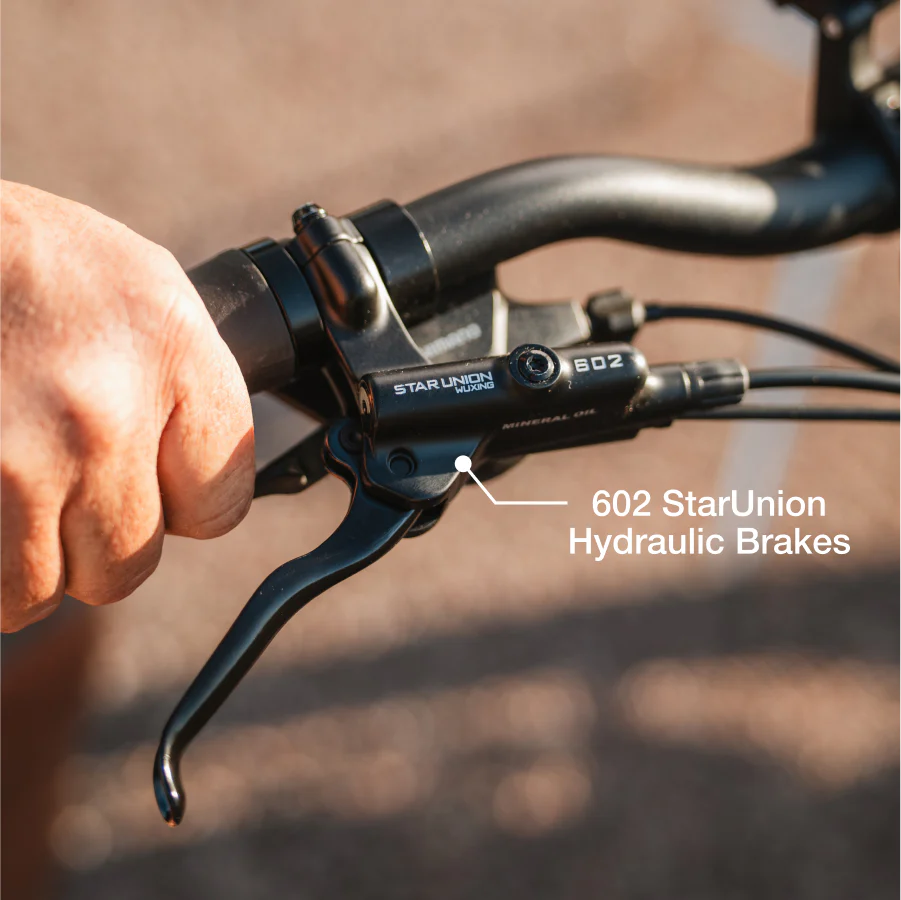

BRAKES
602 hydraulic disc brakes with 180mm rotors

TIRES
20” × 3” puncture-resistant tires with Slime protection

SUSPENSION
Front suspension fork with adjustable tension

LIGHTING SYSTEM
90-lumen headlight with side amber lights and brake-activated rear light

TURN SIGNALS
Integrated rear turn signals

REAR RACK
Integrated rack – 150 lb capacity

PAYLOAD CAPACITY
Maximum 330 lbs

BIKE WEIGHT
62 lbs (without battery)

BATTERY WEIGHT
9 lbs

Dimensions

BIKE UNFOLDED
66″ L × 18.5″ W × 47″ H

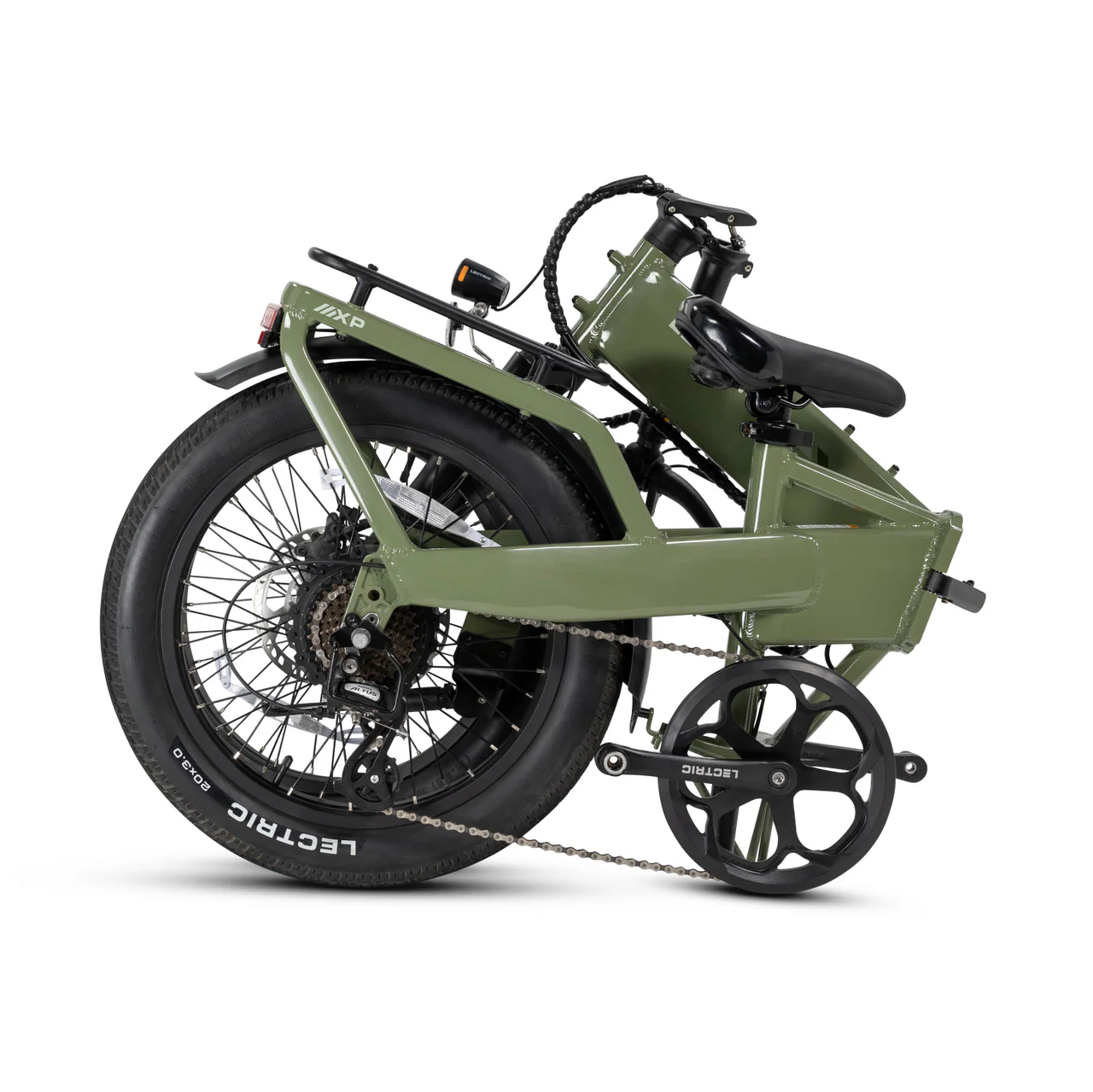

BIKE FOLDED
37″ L × 17″ W × 29″ H

STANDOVER HEIGHT
24″

HANDLEBAR HEIGHT
45″ – 48″ (adjustable)

HANDLEBAR WIDTH
25″

HANDLEBAR REACH
15″ – 18″

SEAT HEIGHT
29.5″ – 42″

RIDER HEIGHT
4’10” – 6’3″
