Urban Arrow FamilyNext Pro – Front Loader Electric Cargo Bike

$7,499.00

$ USD
  • $ USD
  • $ CAD
Compare

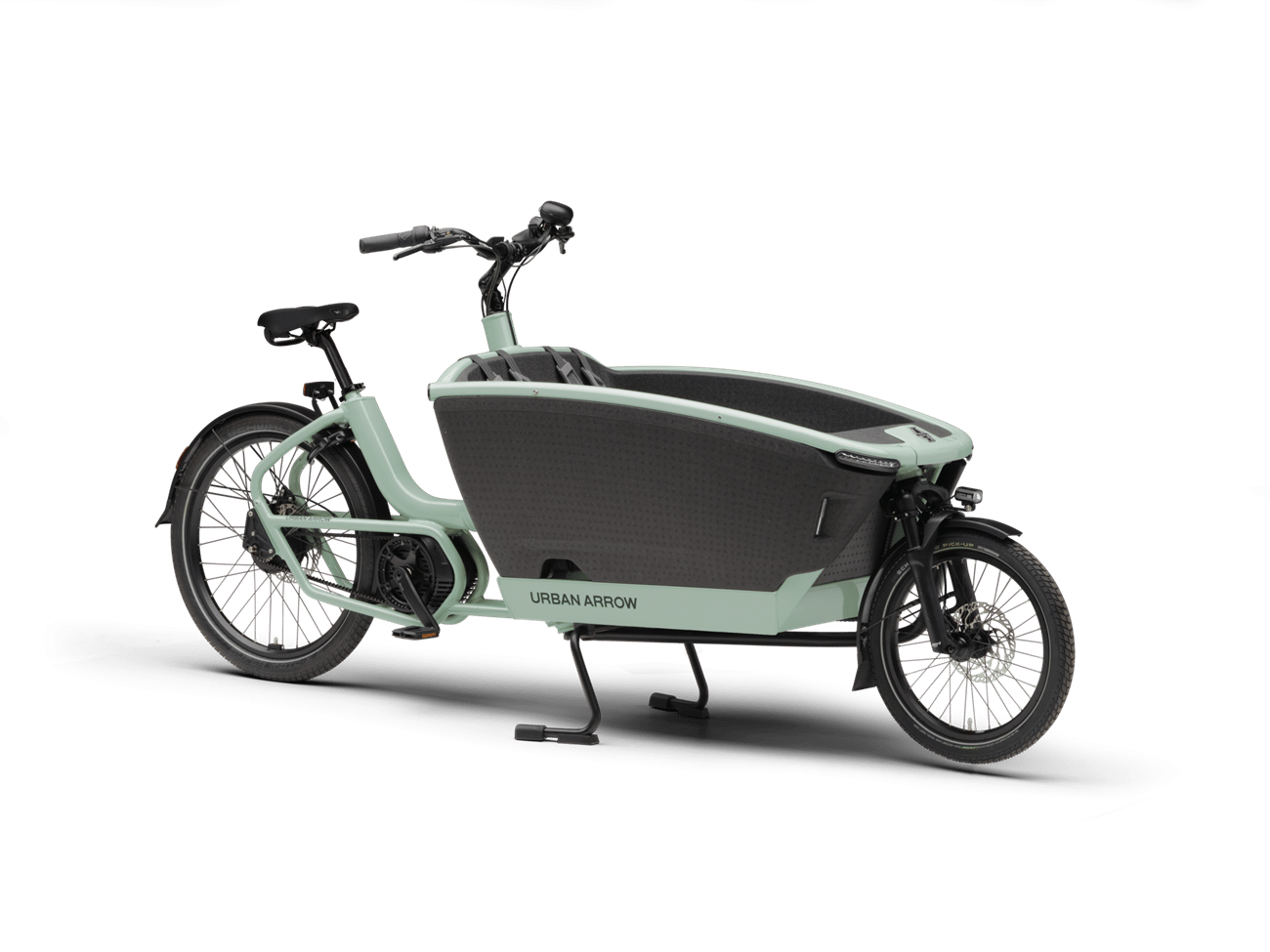

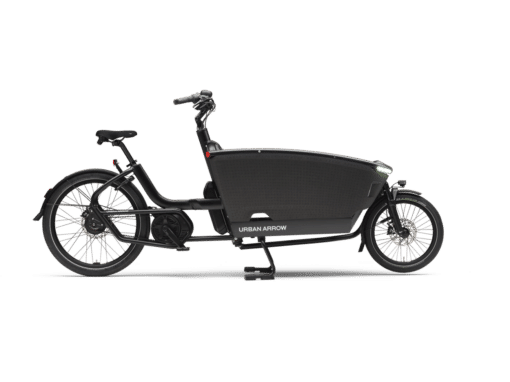

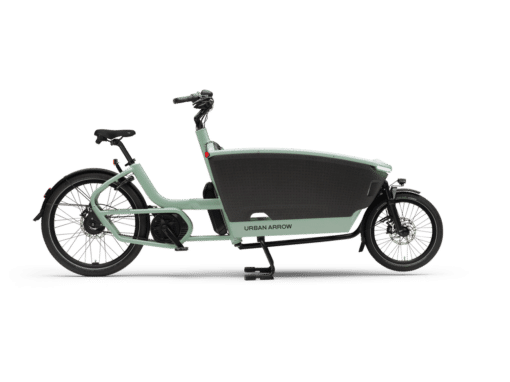

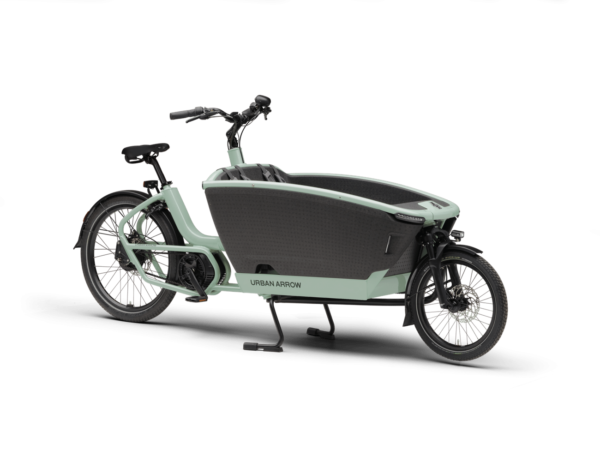

Urban Arrow FamilyNext Prod – Electric Front Loader Cargo Bike – in green or black.

The Urban Arrow FamilyNext Pro – is the latest upgraded version of one of our favorite front loaders families who want to carry 2, 3, or even 4 passengers.  Strong Bosch smart system motor, belt drive and CVT, very strong Magura cargo bike brakes – ready for just about any family adventure.

Skip the school drop off line and keep the car sidelined. Riding the Urban Arrow FamilyNext Prod electric cargo bike provides a fun, safe, and practical way to carry up to 4 young passengers.  The box has a deeper seating position which provides for a lower center of gravity.  Comfort oriented rider position fits a wide range or riders and keeps you in control.  A wide range of thoughtful accessories complete the package.

Urban Arrow FamilyNext Prod – Key Features

  • Strong, reliable Bosch smart system Cargo Line drive system
  • New – Front Suspension Fork for added control and comfort

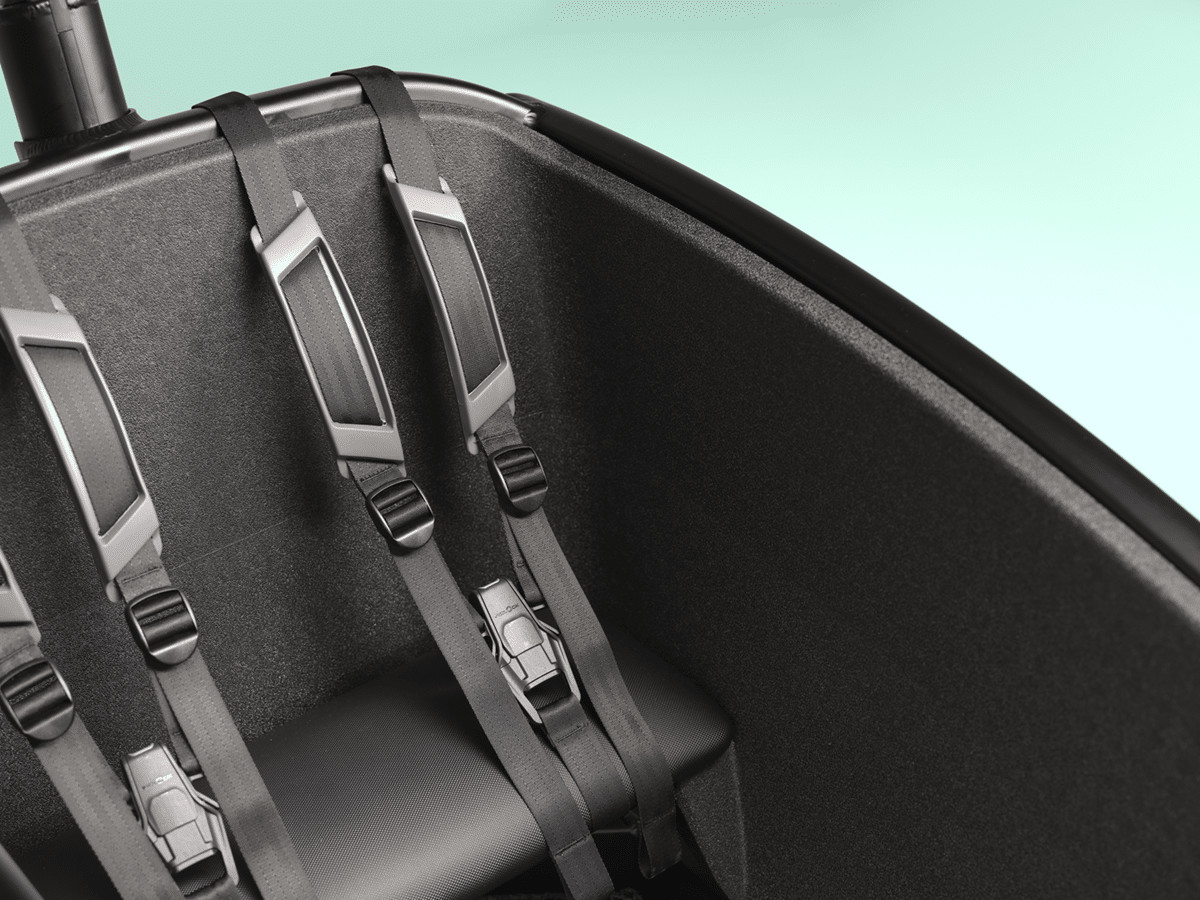

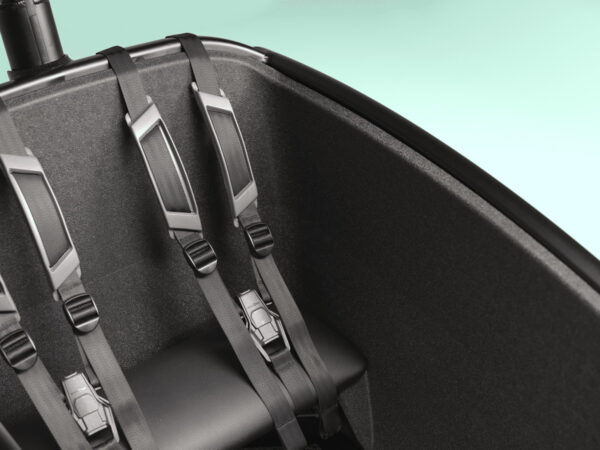

  • New – Re-designed, larger box with One-handed 3 Point Seat Belt system

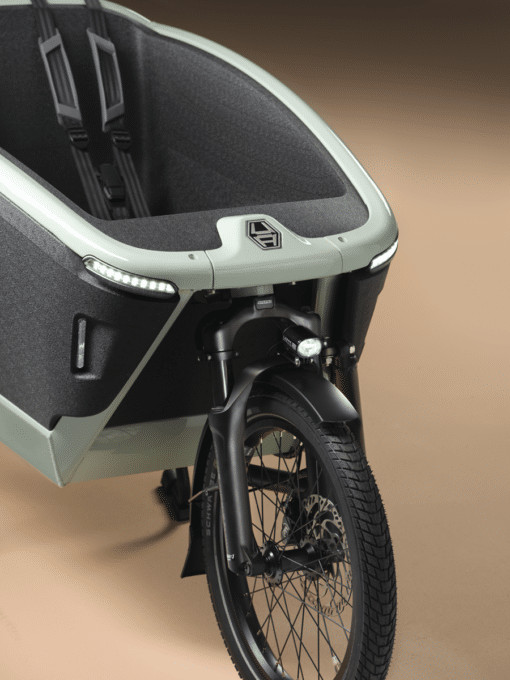

  • New – Lighting and reflective elements for improved visibility and safety
  • Available Bosch Connect Module for Alarm and GPS Tracking functions
  • Class leading 275 lbs front box capacity
  • Very powerful Magura cargo bike braking system
  • Smooth, easy to use, enviolo shifting system with Gates carbon belt ( less maintenance )
  • New – comfortable saddle
  • Available Baby / Car Seat Adapter
  • Available Child Seat Adapter
  • Available Rain Cover
  • Available Rear Rack for even more cargo capacity

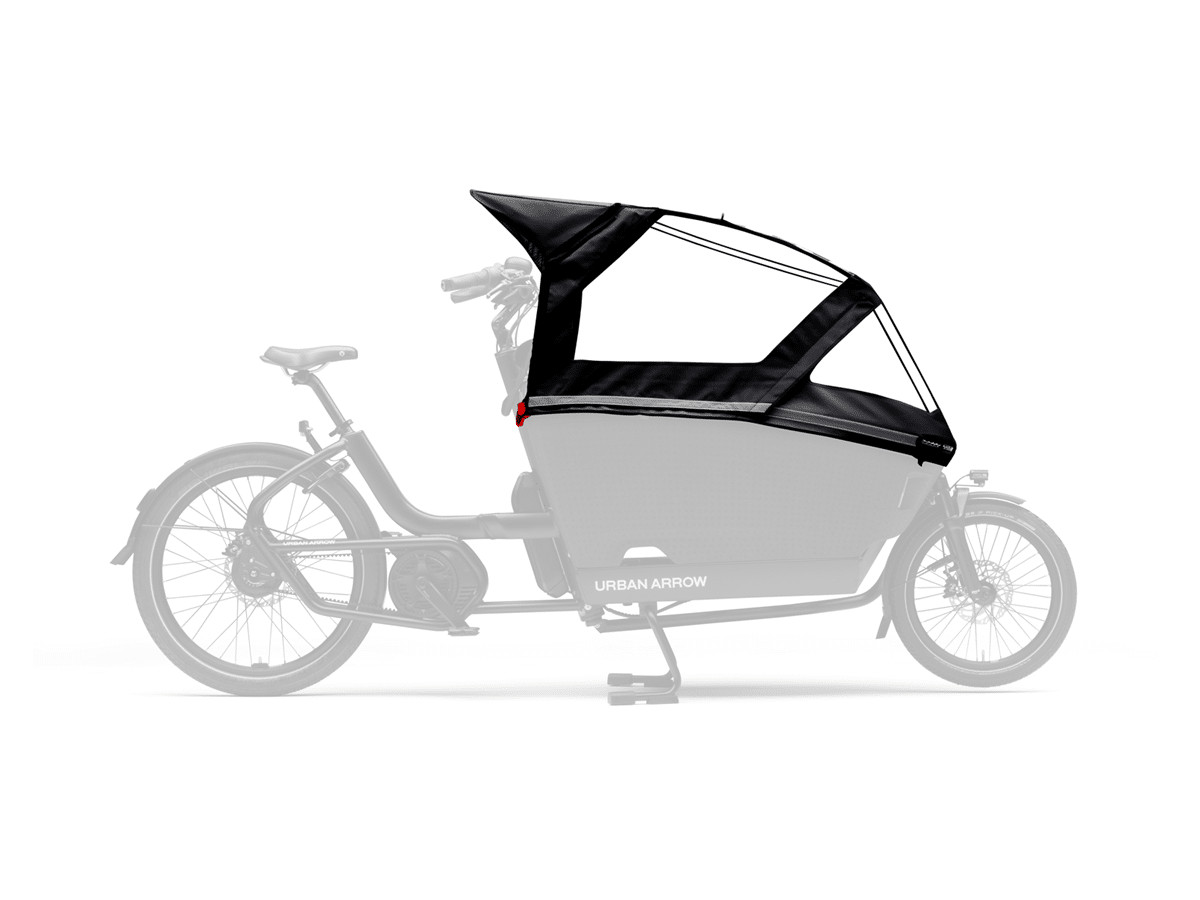

Rain Cover and Rain Cover Plus

Poncho

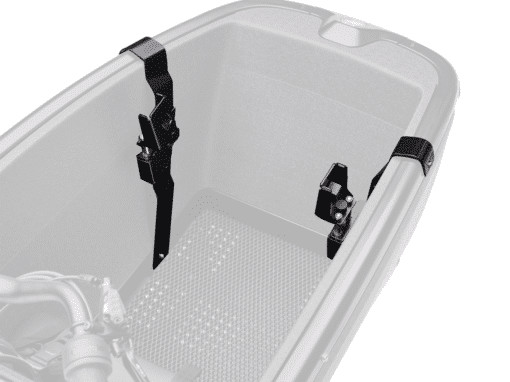

Maxi-Cosi Car Seat Adapter

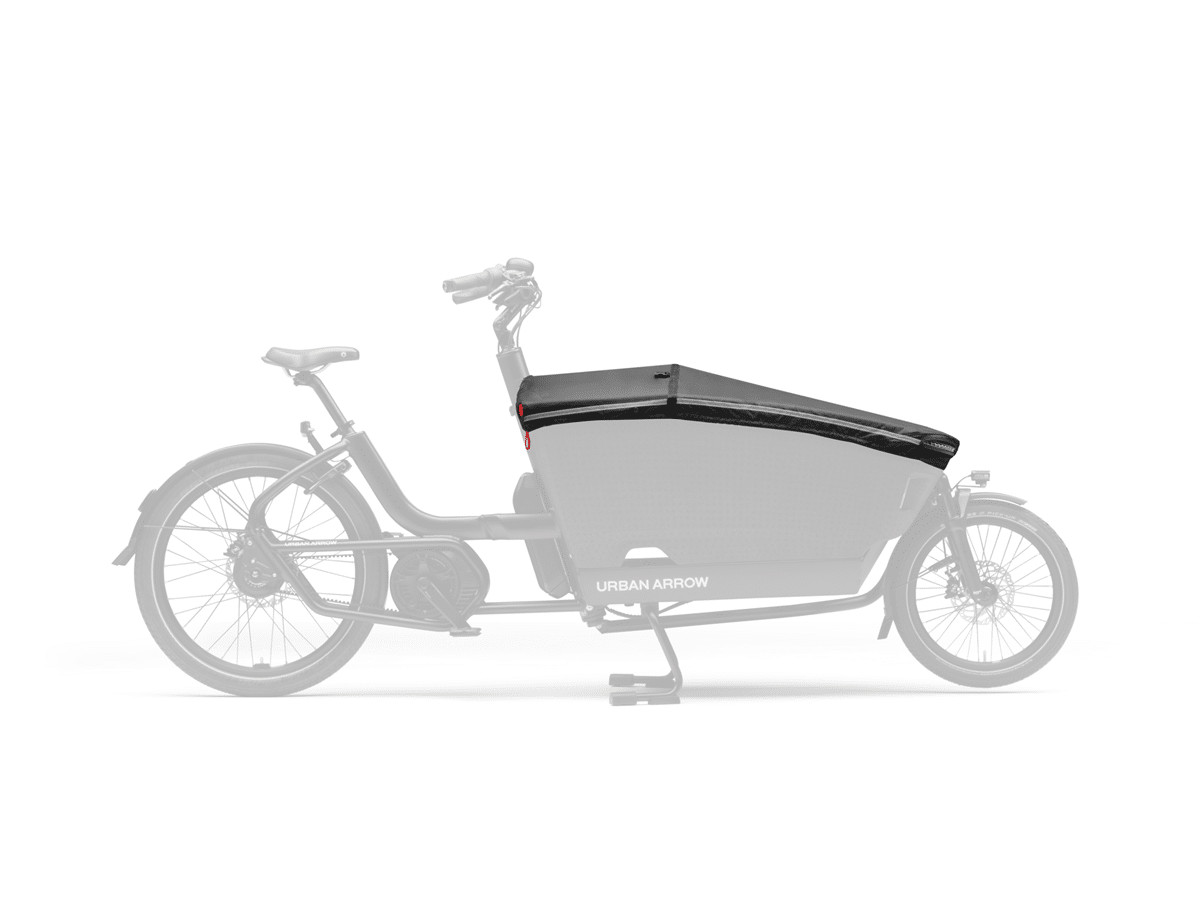

Box Cover

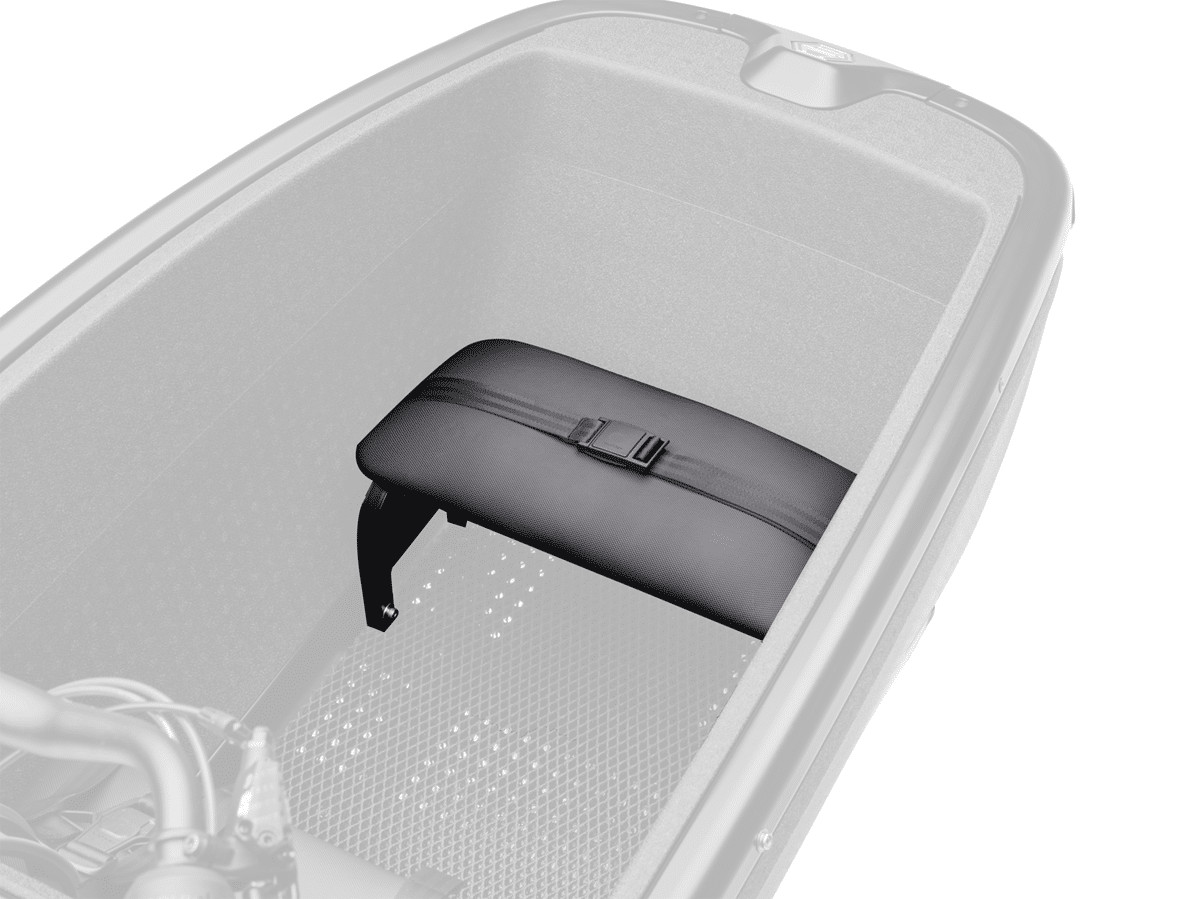

Extra Bench

Yepp Mini Child Seat Adapter

Floor Mat

Luggage Net

Bottle Rails

Bike Parka

Rear carrier

Dual Battery – Wiring/HW (battery is separate)

Description

Urban Arrow FamilyNext Pro

Frame UA4.5:  Green or Black

Weight: 51 kg / 112 lbs complete

Dimensions: L 260cm x W 70cm x H 110cm

Max. Total Weight:  550 lbs (bike + rider + load) / 250kg

Max. Front Load:  275 lbs / 125Kg

Front Fork: Suspension fork, Suntour Mobie34 CGO Boost, 20″, 60mm

Motor:  Bosch smart system Cargo Line – 85 Nm

Alarm & GPS Tracking Module:  Bosch Connect Module ( optionally available )

Battery: Bosch 545Wh

Display:  Bosch Kiox 300

Shifting System:  Enviolo Heavy Duty – gearless Continuously Variable Transmission ( CVT )

Front Hub: 110×15 Thru Axle

Shifter:  Enviolo Twist Display Pro

Rear sprocket: Gates 22T for Enviolo

Front sprocket: Gates Carbon Drive CDX 50T

Brakes: Magura CMe Hydraulic Cargo Brakes.  203mm / 180mm (F/R Rotor)

Rear light:  Spanninga Plateo

Front light:  Lezyne Power E115 + Design LED Lights

Handlebar:  Ergotec Moon Cruiser 31.8 black

Stem:   UA 110mm 31.8mm adjustable

Pedals:  VP 836

Seatpost: UA Custom

Saddle:  Selle Royal On Relaxed Royal Gel

Cranks:  Miranda Delta Gen4

Front wheel: Ryde Andra 40 Double Wall 20” x 1.75

Rear wheel: Ryde Andra 40 Double Wall 26” x 1.75

Front Tire:  Schwalbe Pick Up 55-406

Rear Tire:  Schwalbe Super Moto 62-559 Valve Schrader

Rear Fender: SKS 65mm 26” Black matte

Front Fender: SKS 65mm 20” Black matte
